10" Hydraulic cutter suction dredger
| Price: | 1.0~88888.0 USD |
| Payment Terms: | T/T,L/C,D/A,D/P,WU |
| Place of Origin: | Shandong, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
The cutter suction dredger's is equipped with a cutter at the inlet of the pum pipe, of which the function is to cut and loose the sand and gravel.
Product Detail
Model No.:CYCSD1100
Type: Hydraulic
Capacity: 200 m3/h
Discharge distance: 200m
Place of Origin: Shandong,China(Mainland)...
Water flow:1000 m3/h
Dredging depth: 10m
1)Advanced PLC control system
2)reliable hydraulic system
3)standard design ,good quality ,best service
4)SGS standard

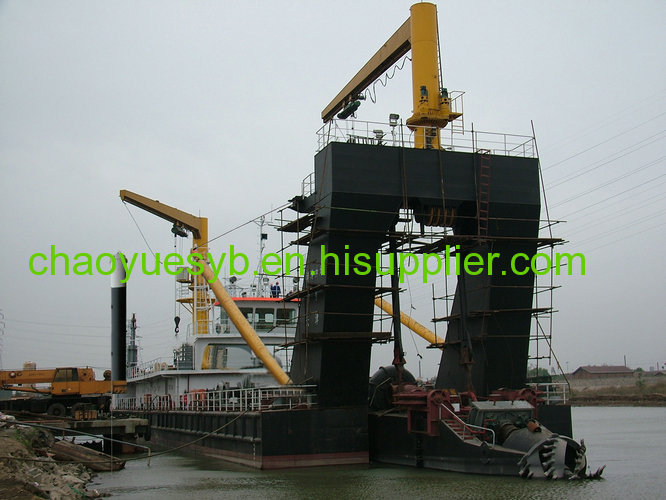

10 inch hydraulic cutter suction dredger
New advanced sand cutter suction dredge
1.Description of cutter suction dredger
A cutter suction dredger is a stationary or self-propelled vessel that uses a rotating cutter head to loosen the material of the riverbed.
A suction inlet located beneath the cutter head (known as the suction mouth) is connected by a suction pipe directly to one or more centrifugal pumps. The vacuum force at the suction inlet sucks up the loosened material. The suction pipe and cutter head are attached to a ladder. The ladder fitted with the cutter head is positioned at the fore of the vessel.
2.Specification of 12/10 hydraulic cutter suction dredger
Item | Specification |
Overall length : | 27.00m |
Hull Length | 20.00m |
Hull Breadth | 7.2m |
Hull Depth | 2.0m |
Draft loaded | 1.30m |
Dredging depth | 10.00m |
Discharge distance | 200m |
Suction/Discharge Pipe Diameter | 350/300mm |
Water Flow | 1000m3/h |
Capacity | 200 m3/h |
